How to use color OLED display SSD1331 with STM32

14.02.2018

SSD1331 96x64 0.95" 65K Color OLED display module

Specification

Size: 0.95 inch Resolution: 96*64 Drive IC: SSD1331 Color: 65536 color Interface: SPI interface PIN NO.: 7Pin Voltage: 3.3V - 5V

Pin description

GND: Power ground VCC: 2.8-5.5V power supply D0: CLK clock D1: MOSI data RST: Reset DC: Data / command CS: Chip-select signal

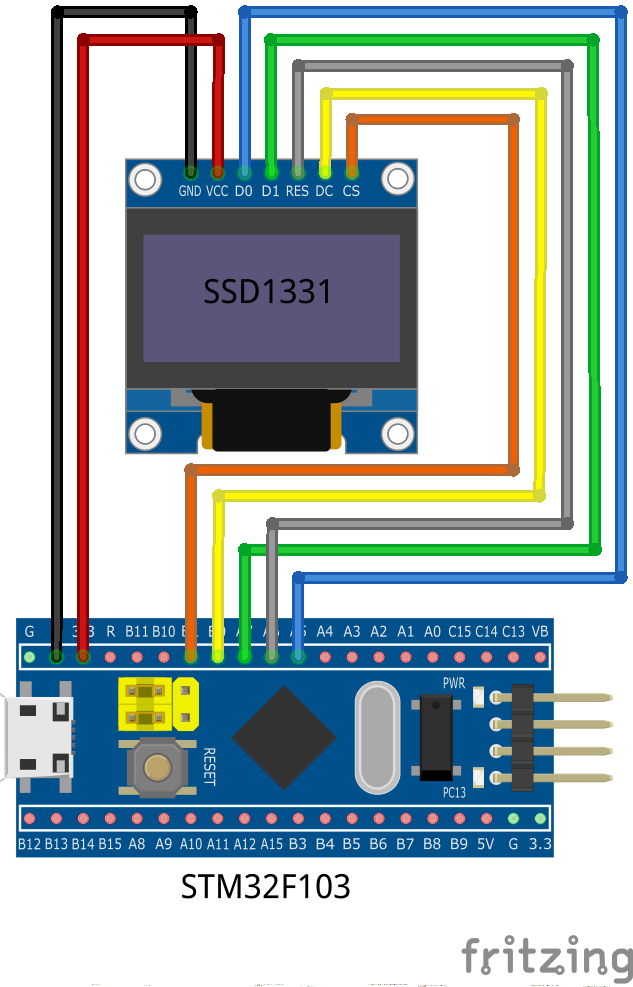

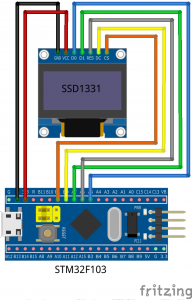

Circuit

SSD1331 Library & Example for STM32

https://github.com/avislab/STM32F103/tree/master/Example_SSD1331

Video
